High Percision Radar Level Control Measurement

High Percision Radar Level Control Measurement

    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 1 Bag/Bags
    Delivery Time: 180 Days
    Packaging: wooden packing
    Brand: DFMC
    Transportation: Ocean,Land,Air
    Place of Origin: DANDONG
    Port: Dalian,Shanghai,Tianjin

Product Description

High Percision radar level Control Measurement


1. Product Overview
Radar Level Meter (LM) is one industrial online material level detection instrument, which can measure the material level in bunker or storage tank. Since the radar wave propagates in a straight line in the air, the selected installation position of the radar level meter should accurately reflect the radar wave back to the radar antenna to reduce the interference wave reflected by the interference object and make the Radar Type Level Transmitter accurately reflect the real level. Generally speaking, in practical applications, the installation of the Radar Level Gaugeprobe has the following requirements:
1. When installing Radar Level Meter timing, avoid vibration, high pressure cleaning and lateral load installation to avoid instrument damage.
2. When installing the Radar Level Transmitter, avoid the material inlet as much as possible to prevent the falling material from interfering with the measurement echo and affecting the measurement.
3. When installing radar material level timing, try to avoid installing the instrument in a place with strong eddy current. If there is agitation or a strong chemical reaction on site, it is best to use a still-wave tube or a bypass tube for measurement.
4. In order to avoid the loss of echo, the radar level gauge should not be installed in the center of the vaulted roof tank or the horizontal tank.
5. The best installation position of the radar level gauge is at 1/2 of the radius of the container, which can effectively prevent the instrument installed on the tank wall from generating interference echoes.
6. Install the radar level timer. In order to reflect the radar wave back as much as possible to reduce energy loss, ensure that the beam emitted by the probe is as perpendicular to the surface of the material as possible, and the angle of repose of material storage should be considered.

Level Sensor For Water Tank


2. Operating Principle
FM Continuous Wave (FMCW) principle is adopted for LM.



3. Product Features

· First commercialized X- band solid radar level meter in the industry.
· Material level detection is more comprehensive by the applying of large beam angle detection technology.

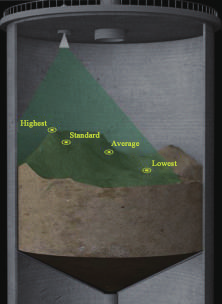

· Comprehensive detecting of the material level information. (Highest, lowest, average, etc.)
· The advanced Signal processing technology ensures stable and accurate measurement under the poor working conditions of dust and water vapor.
· Unique feeding interference suppression function can solve the problem of complex disturbance in the feed bin.
· Various settings are equipped with local display function, which is extremely convenient to operate.




4. Technical parameters

· Power supply: AC:220V(±15%)50HZ 10W, four-wire;
DC: 24V(±25%) 8W, four-wire
· Measuring Range: EC -75m;ST-100m ;AI-120m;AII-150m
· Repeatability: 0.5mm
· Resolution: 0.3mm
· Output signal: 4~20mA, one way on-off input & output
· Beam angle: 18° with 3dB as the demarcation point
· Max. adaptable change rate of materials level: 12m/min
· Process temperature: -40-65℃ for general type; -40-200℃ for high temperature type
· Level of Protection: IP65



5. Product Application
1) Cement industry
Application location: raw meal silo; raw coal bunker; raw mix station; cement silo; surge bin after homogenization, etc.
2) Mineral processing industry
Application location: crushing surge bin; grinding & dressing bin; feeding bin, etc.
3) Coal industry
Application location: raw coal bunker; washing coal bunker; fine coal bunker, etc.
4) Power industry

Application location: raw coal bunker; pulverized coal bunker; limestone bunker, etc.



Area of Application
Radar Level Gauge
Sensor is specially designed for non-contact level measurement in cement industry. It measures raw materials, additives, clinkers and cement products even under extreme environment such as heavy dust or high temperature, which are very common in cement plant. The robust design and featured functions enable LM radar sensor gives stable and reliable measurement results.


Measuring Principle
FMCW (Frequency Modulated Continuous Wave) technology is adopted by Radar Type Level Transmitter sensor. It works like this: microwave signals with continuous linear changes are sent toward the medium through antenna, the material surface reflects signal waves, which are then received by the antenna. There is frequency difference between transmitting and receiving the signals, LM calculates this difference and tells the level.



Features
♢ X-band possesses penetrability as well as anti-interference ability.
♢ 18° large beam angle covers large measurement area, avoid blind zone.
♢ Unique anti-feeding interference algorithm ensures more accurate measurement.
♢ Multiple measuring modes enables different application requirements.
